Vehicle Powertrain Test System

Driving range has become a core development objective for New Energy Vehicles (NEVs). To optimize range, engineers require a detailed understanding of energy consumption across individual components. Intelligent thermal management plays a pivotal role in extending driving range.

Furthermore, modern powertrain test systems must support a wide array of scenarios—from performance testing and strategy validation to special road condition simulation, failure mode analysis, and electrical accessory evaluation.

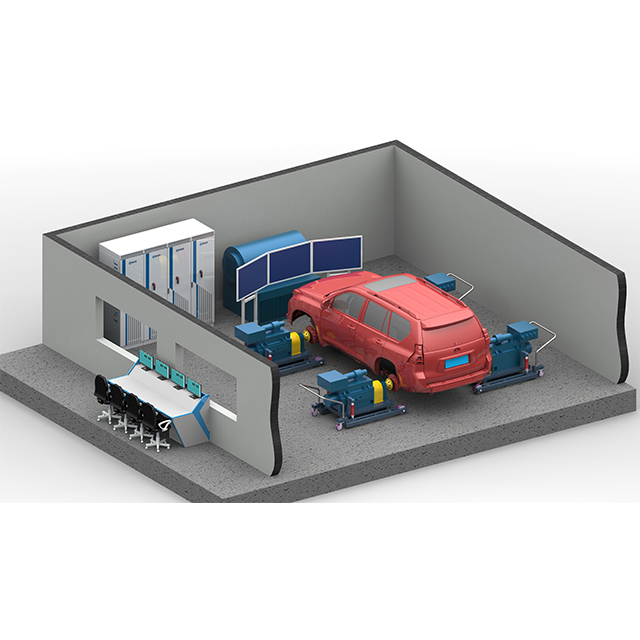

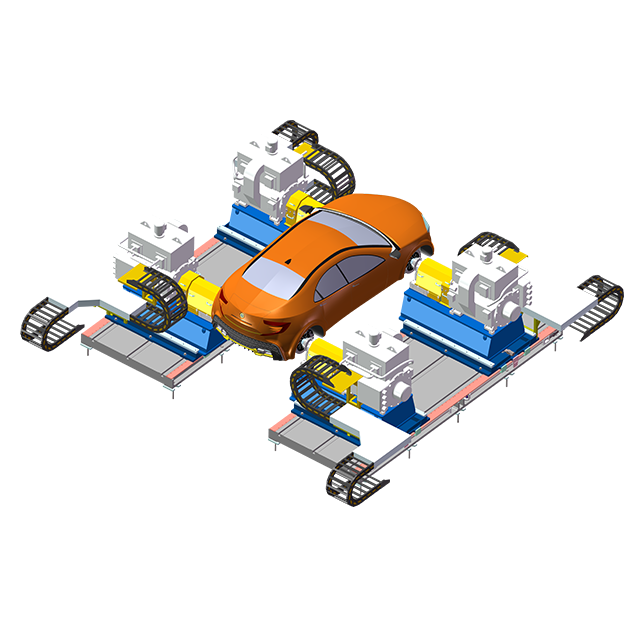

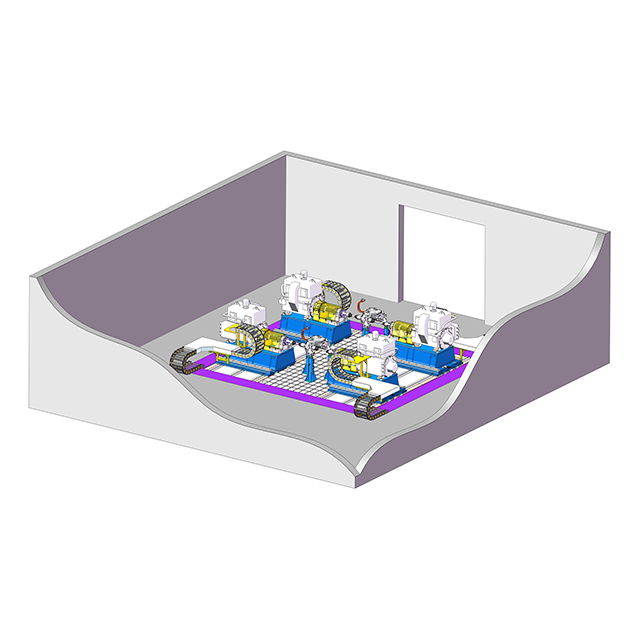

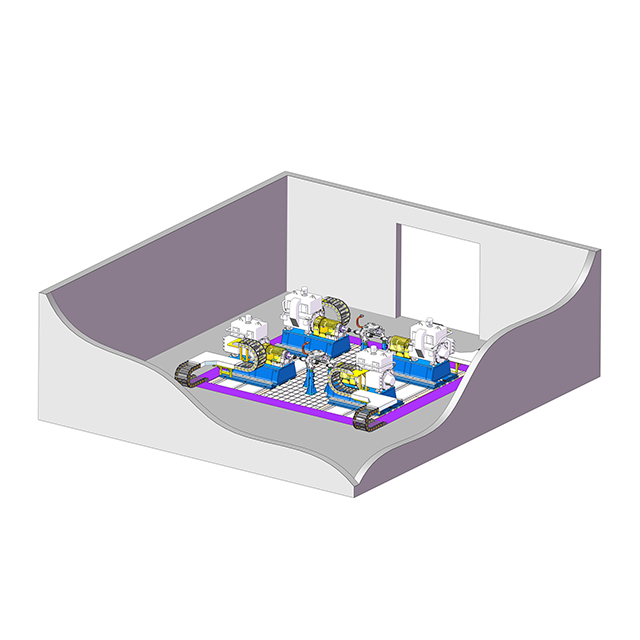

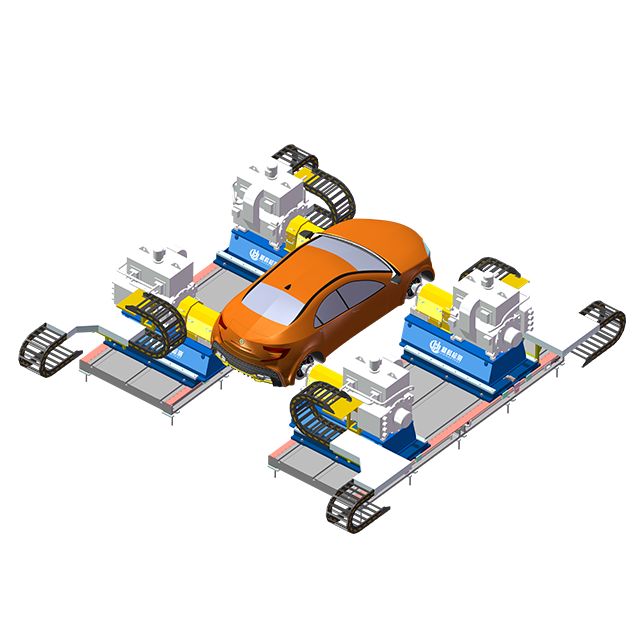

The JKT Powertrain Test System features high-dynamic dynamometers directly coupled to the vehicle wheel hubs to simulate road loads. JKT provides dynamometer systems capable of simulating extreme temperature environments and solar radiation, enabling comprehensive testing of the complete vehicle.

Main Functions of the Test Bench

• Vehicle Road Load Simulation Test

• Vehicle Driving Range Test

• Vehicle High/Low Temperature Environment Test (equipped with an climate chamber)

• Cycle Condition Test

• Acceleration and Deceleration Test

• Differential Test

• ADAS Test (equipped with an ADAS test system) without steering

• Steering Test

• ABS/ASR Test

• ESC/ESP Test

• AEB Test (maximum acceleration: 7.85 m/s², vehicle weight ≤ 3 tons)

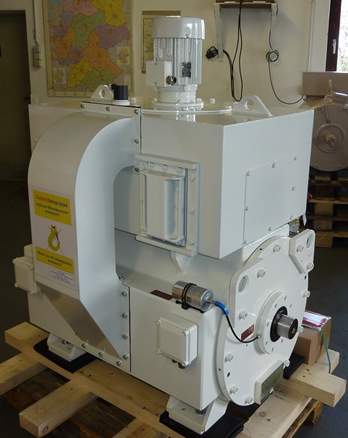

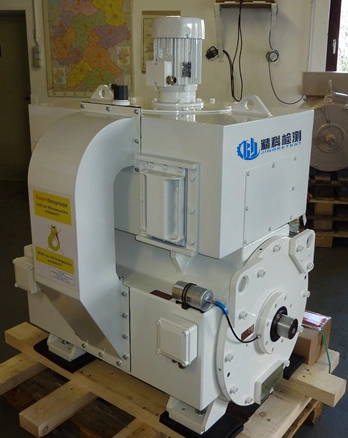

Typical Dyno parameters:

• Rated power: 200kW to 500kW

• Rated torque: 2000N.m to 5000N.m

• Max. speed: 3000rpm

• Inertia :0.8kg.m2 to 3.5kg.m2

• Cooling : water cooling

• Operation temperature: -40°C-65°C

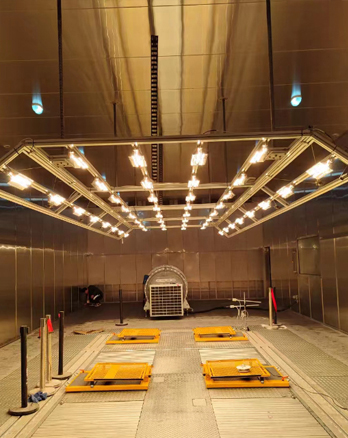

Typical Climate Chamber:

• Temperature Control Range: -40℃~+60℃

• Humidity Control Range: 20%~90%

• Solar Simulation System Illumination Radiation Power: 600~1200W/m2

• Altitude simulation: 5000m

• Inside size：about 14000mm×6000mm×6200mm

• Temperature Stability：±1℃(Static)，±2℃(Dynamic)

• Temperature Rise/Fall Rate≥0.4℃/min, (-40℃～+60℃，average value for the whole process with a 3.5t vehicle parked inside, static state）
