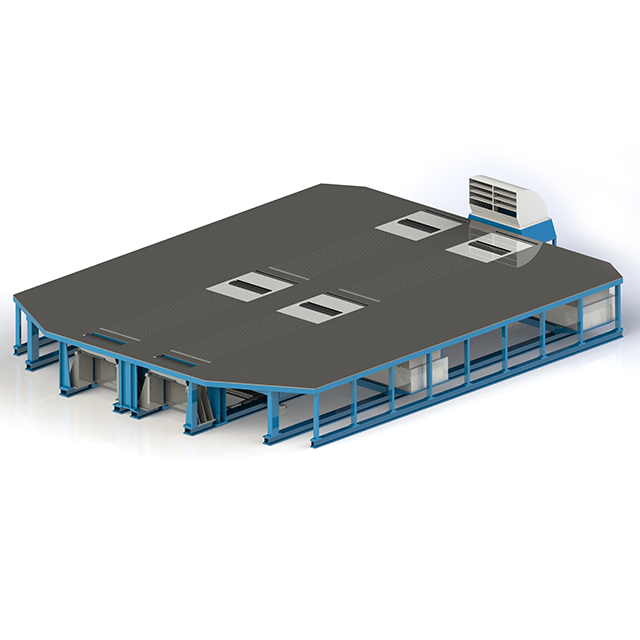

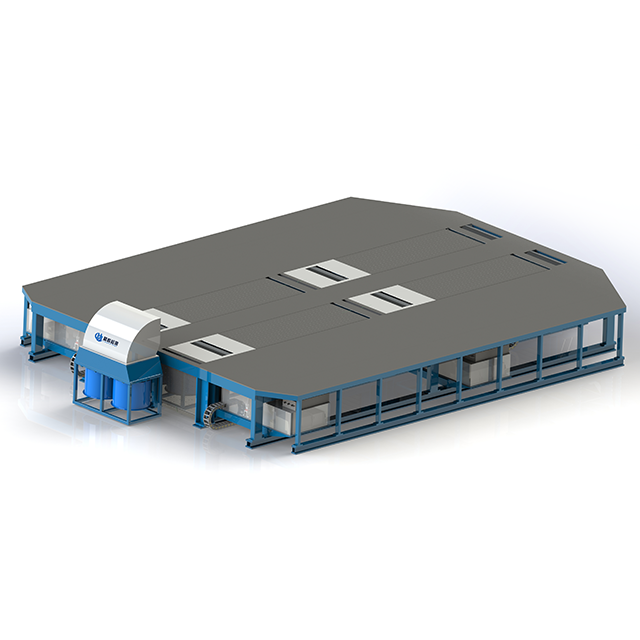

Integrated for Turntable Chassis Dynamometer for EMC Test

  • Each dynamometer unit is independent and controlled by four-quadrant inverter.
  • The dynamometer system can drive and brake each wheel independently, enabling high-precision reproduction of single-wheel dynamics, ABS control, traction control, and all-wheel drive operating conditions.

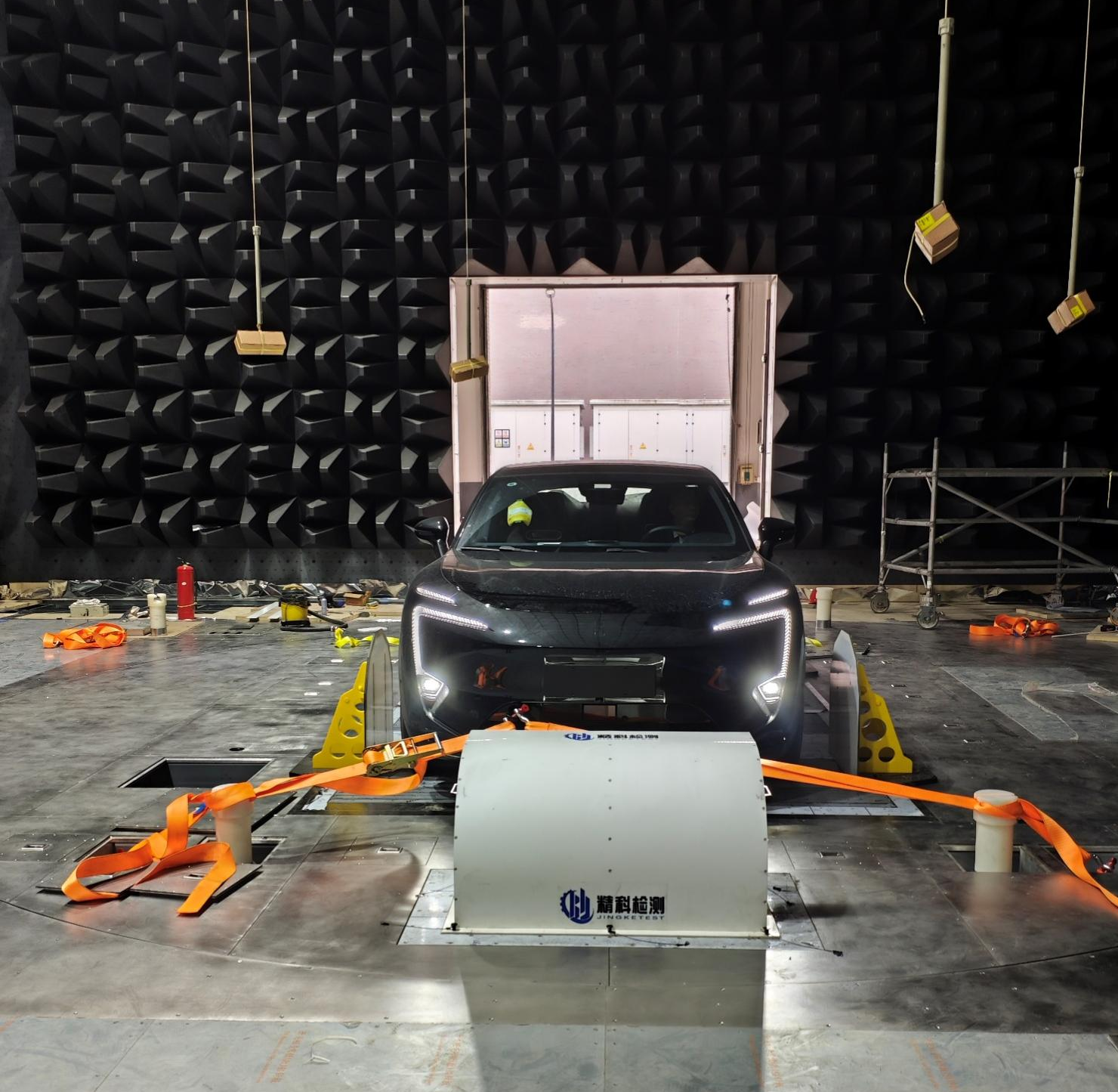

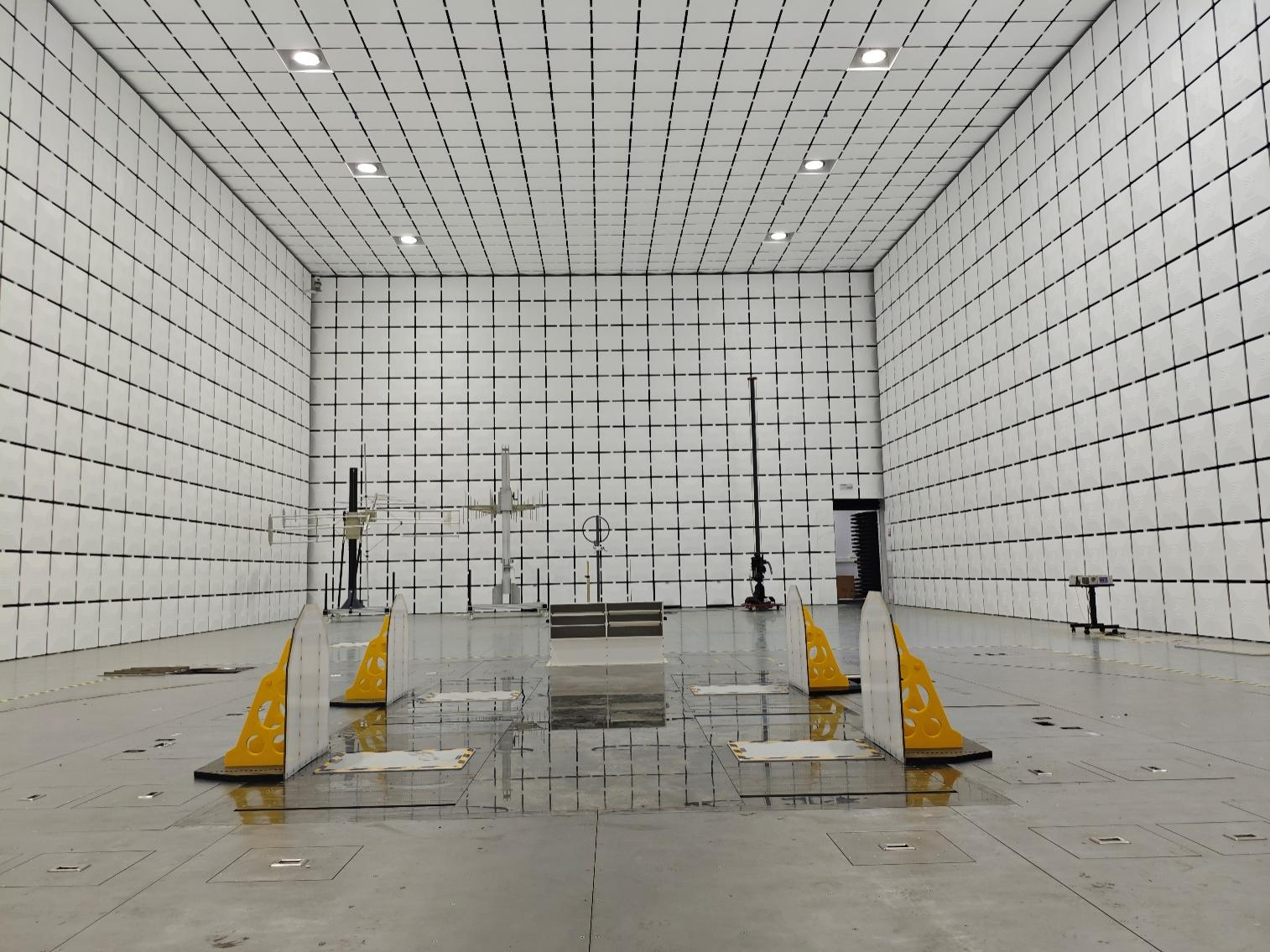

  • Vehicle testing can be performed in anechoic chambers or reverberation chambers.
  • The wheelbase is adjustable to suit testing requirements for different vehicles.
  • It can be equipped with supporting devices such as automatic driving robots, exhaust systems, and vehicle wind-facing systems.
  • With unique shielding technology, it meets the background noise requirements of standards including CISPR 12, GB/T 18387-2008 and GB 34660.

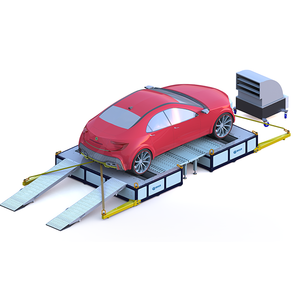

  • The dynamometer features a free-standing floor-mounted structure.
  • The vehicle fixing device is integrated with the dynamometer body, ensuring firmness and reliability.

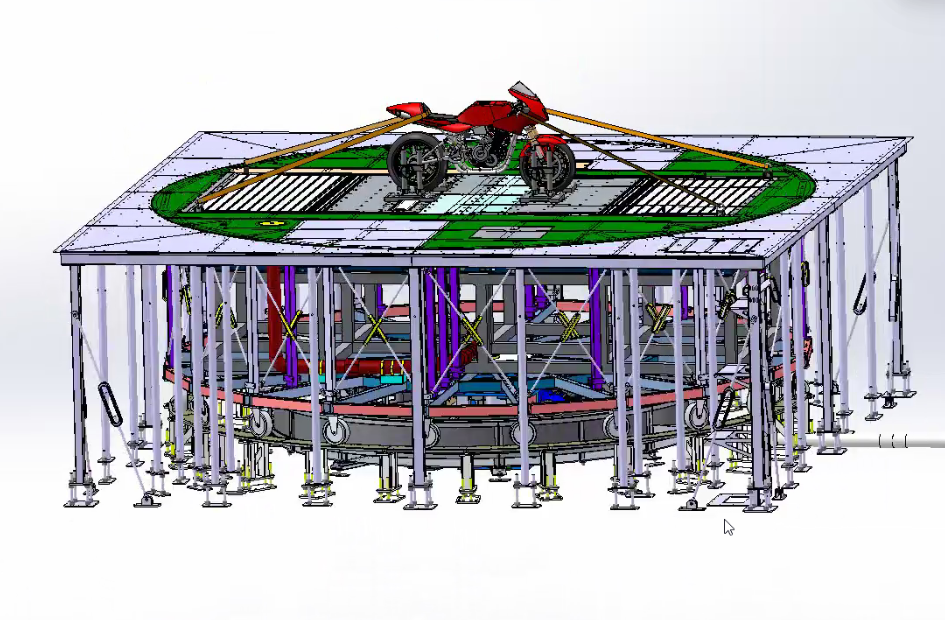

  • Equipped with turntable, and integrating the control by the chassis dynamometer control software.
  • Equipped with free-standing fan for tires or other components.
  • The Axis load can be customized by customer according to the tested vehicle.
  • JKT’s chassis dynamometers have different roller diameters and types.
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

Model Selection

Type

Prated(kW)/Axle

Frated(N)/Axle

Vmax(km/h)

Vrtated(km/h)

Roller Diameter

ECD-A22-X

45

2300

120

70

240mm/320mm

ECD-A34-X

68

3950

120

79

240mm/320mm

ECD-A41-X

82

3950

120

100

240mm/320mm

ECD-B120-X

240

8800

120

100

37.5in

X- the number of axles


45kW 100km/h EMC Chassis Dynamometer for Car

120kW 120km/h EMC Chassis Dynamometer for Commercial Vehicle

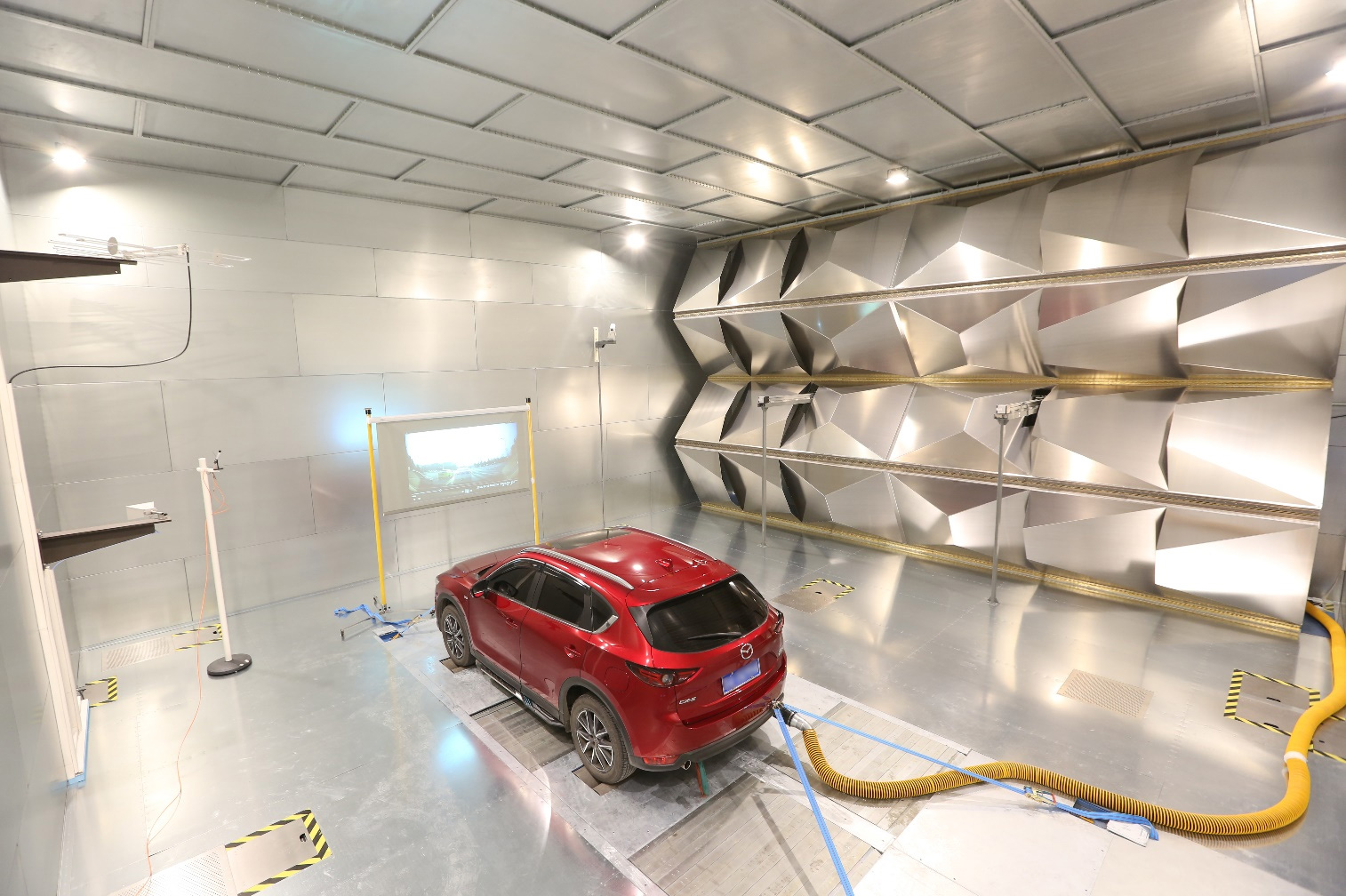

68kW 120km/h EMC Chassis Dynamometer for Car (in reverberation chamber)

15kW 100km/h EMC Chassis Dynamometer for Motorcycle in anechoic chamber
