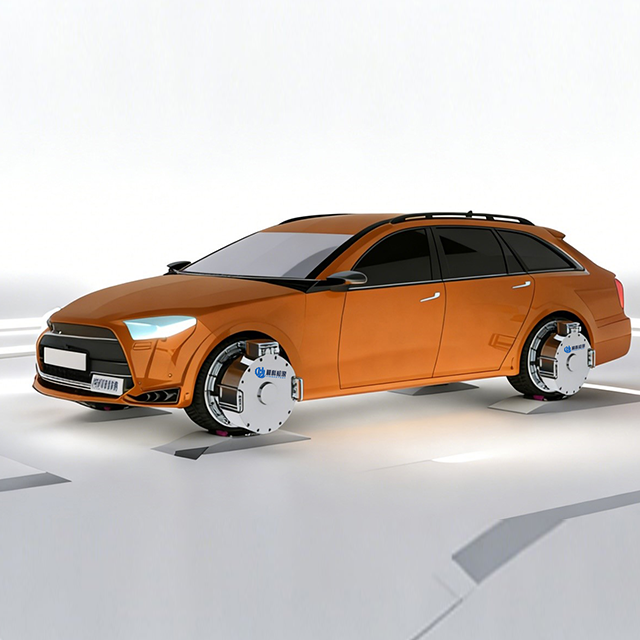

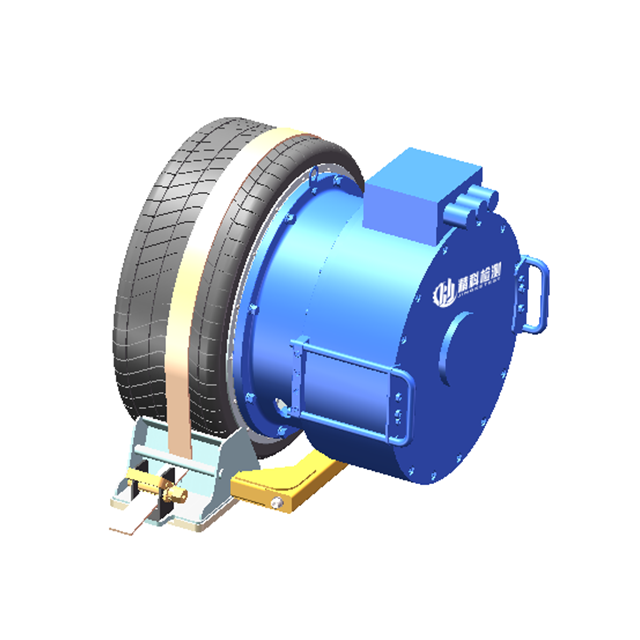

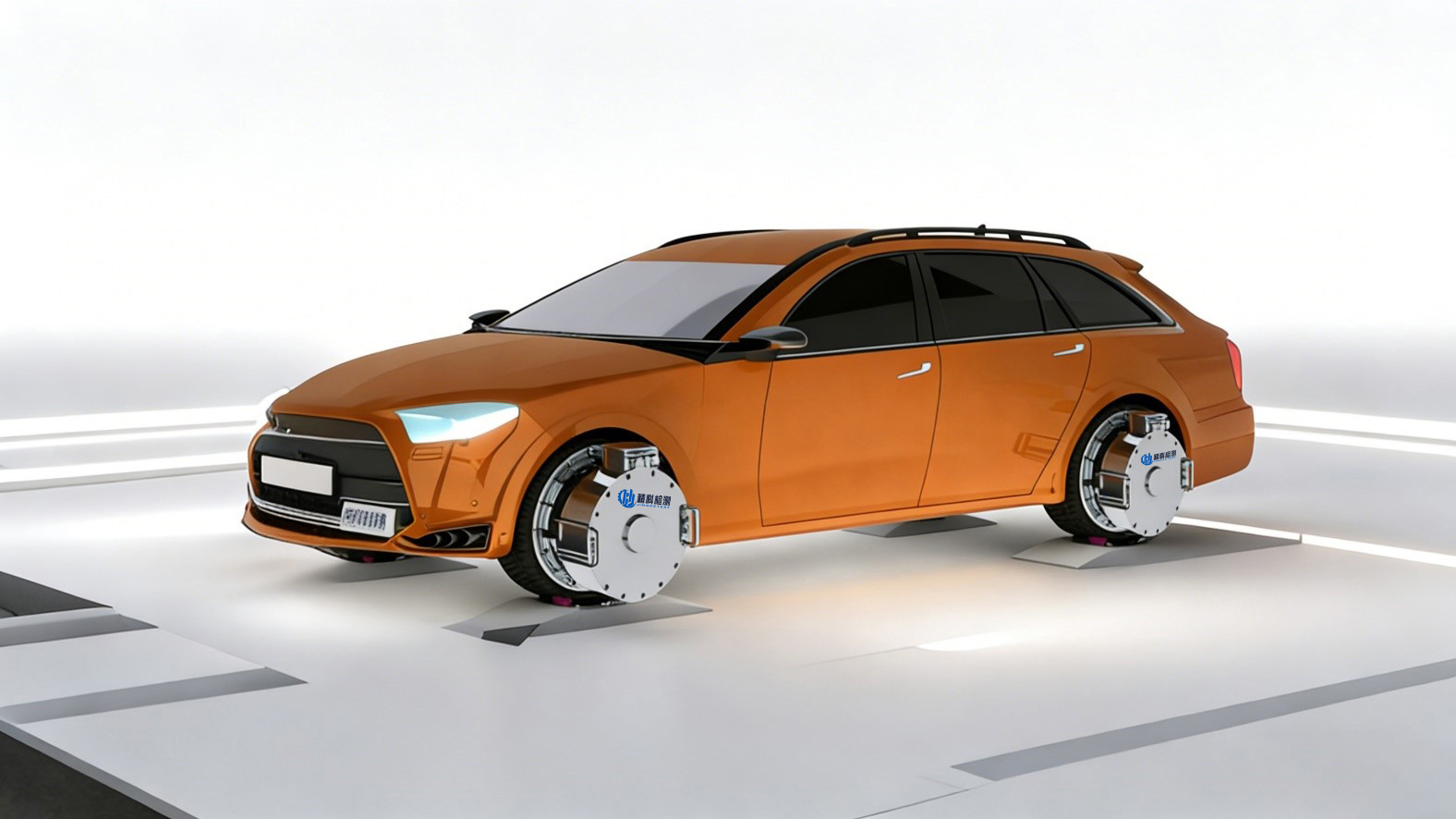

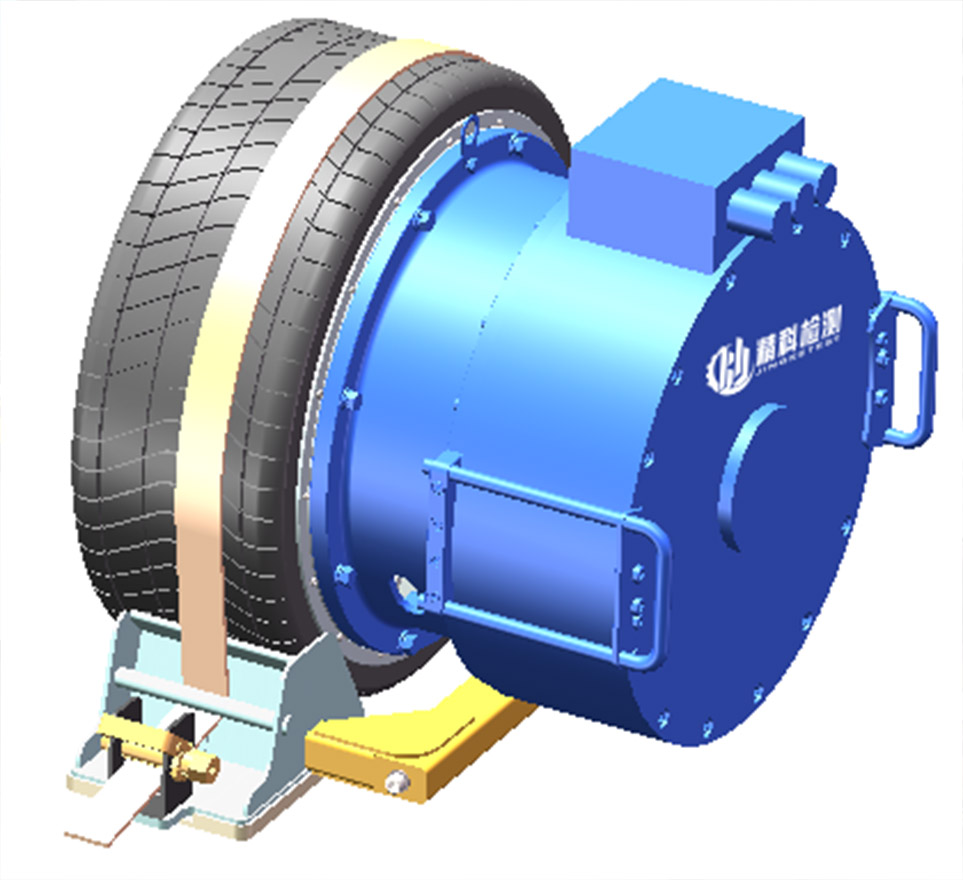

Wheel Hub Dynamometer System

Your Benefits:

• Quick and easy installation

• No expensive structural requirments necessary

• Steer testing with the vehicle otiginal state

• Particularly well suit for the evaluation of AD/ADAS driving fuctions



Main Functions of the Test Bench

• Vehicle Road Load Simulation Test

• Vehicle Driving Range Test

• Vehicle High/Low Temperature Environment Test (equipped with an climate chamber)

• Cycle Condition Test

• Acceleration and Deceleration Test

• Differential Test

• ADAS Test (equipped with an ADAS test system)

• Steering Test

• ABS/ASR Test

• ESC/ESP Test

• AEB Test (maximum acceleration: 7.85 m/s², vehicle weight ≤ 3 tons)

Typical Dyno parameters：

• Rated power：200kW

• Rated torque：2000N.m

• Max. speed：3000rpm

• Max. torque：3000N.m @ 60s，4000N.m@10s

• Inertia ：0.2kg.m²

• Cooling ：water cooling

• Operation temperature：-40℃~65℃

With the development of intelligent driving systems, coupled with the growing complexity and criticality of traffic conditions, the verification processes for these functions have become correspondingly more sophisticated, stringent and costly. Real-world testing is particularly constrained, as an increasing number of relevant traffic scenarios can only be evaluated within limited scopes.

Restrictions are especially pronounced for testing of hazardous operating conditions.

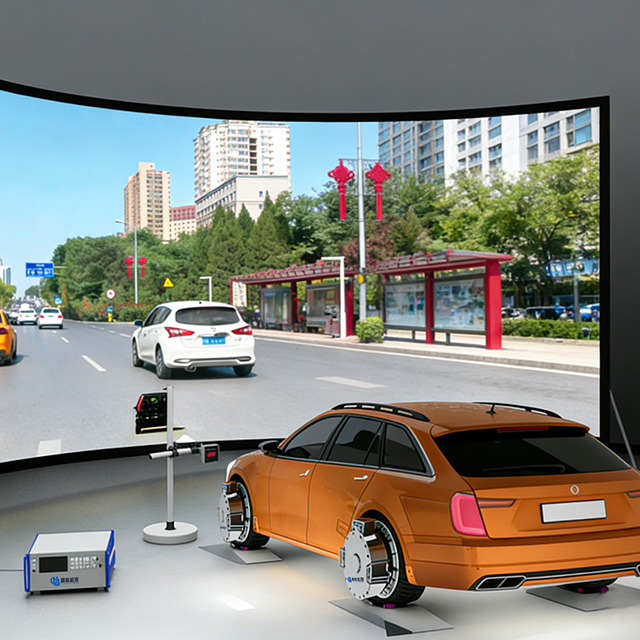

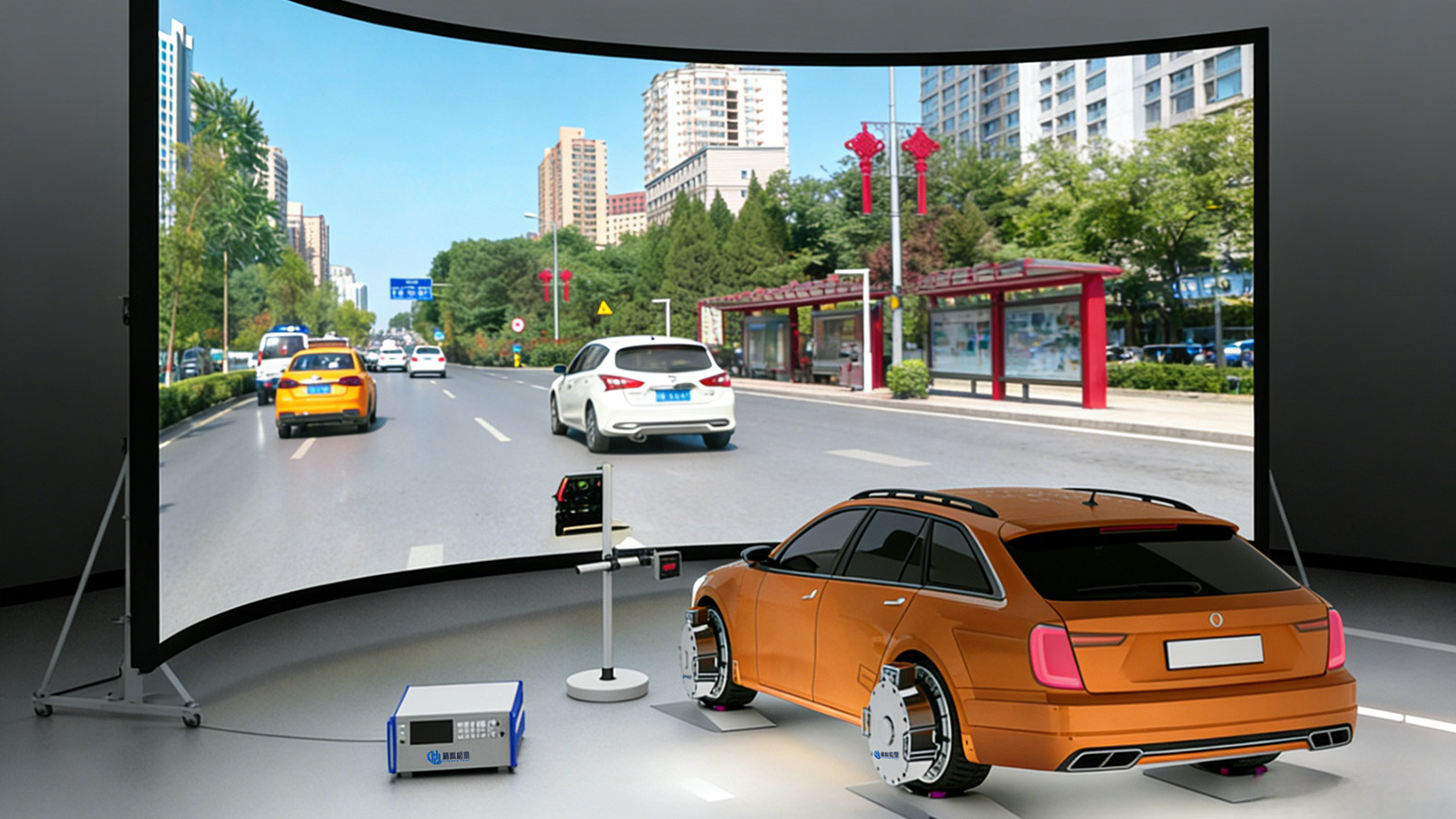

The resulting ViL solution is particularly well suited for the evaluation of automated driving functions. Optionally in combination with AD / ADAS hard- and software.

The advanced vehicle-in-the-loop (VIL) testing methodology has been fully developed to facilitate safe, repeatable and efficient vehicle function testing.

The application of advanced VIL in the field of intelligent driving enables functional and integration tests to be completed early in the development cycle. Since the vehicle is physically secured to the dynamometer, the system significantly enhances testing safety.

Additionally, as testing is conducted indoors, all environmental parameters (humidity, ambient light, temperature, etc.) can be precisely controlled, thereby ensuring test repeatability.

Main Functions of the Advanced Vehicle-in-the-Loop in the Development Process of Intelligent Driving

• Vehicle-level testing, making up for the deficiencies of HIL testing in the highly integrated level of vehicle systems

• Application of real torque and speed, serving as a key verification link between simulation and actual vehicle road testing

• Verification of vehicle behavior, braking safety systems, ADAS and autonomous driving control decision-making systems

• Testing, verification and optimization of the reliability of control strategies and embedded systems

• Development of autonomous driving & ADAS and related test verification
